[產品說明]: 平紋無紡布表面比較光滑，又稱7031聚脂纖維電工無紡布，由聚酯纖維經浸漬粘合烘干成型。纖維經過充分梳理，縱向強度高。具有質量輕，厚度薄，拉伸強度大，絕緣性能好，低彈性，無腐蝕性等特點。

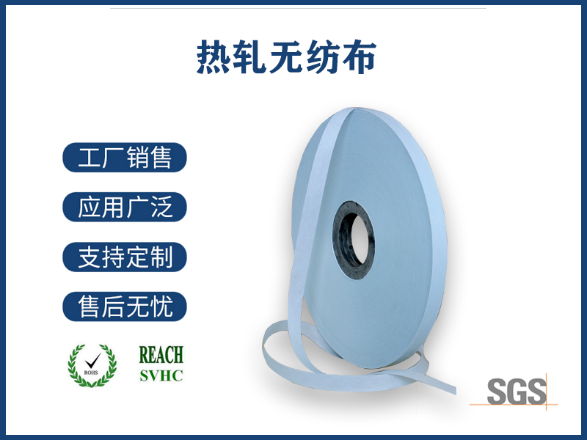

Product Description: Plain non-woven tape has smooth surface, also called 7031 polyester electrical non-woven tape, made of polyester, and via filament impregnated adhesive drying process. Fiber combed fully, longitudinal strength. With light weight, thin thickness, tensile strength, good insulating properties, low elasticity, non-corrosive and so on.
[應用方式]: 適用于橡套電纜、電力電纜、特種電纜、通信電纜、同軸電纜、音頻舞臺電纜和光纜等。
Application: Used in rubber-sheathed cables, power cables, special cables, communication cables, coaxial cables, audio cables and optic cable.
一、主要技術指標：
Main specification:
產品規格 Specification | 伸長率 Elongation（%） | 抗張強度 Tensile strength （N/30mm） | 基重 Basis weight （g/m2） | 熱收縮率 Heat shrinkage （%） | 吸水速度 Water absorption speed （mm/min） |
| 35±5μm | 10↑ | 24↑ | 17±3 | 2.5↓ | 0.1↓ |
| 80±5μm | 10↑ | 100↑ | 40±5 | 2.5↓ | 0.1↓ |
| 100±5μm | 10↑ | 120↑ | 70±5 | 2.5↓ | 0.1↓ |
| 150±5μm | 10↑ | 160↑ | 75±5 | 2.5↓ | 0.1↓ |
| 200±5μm | 10↑ | 200↑ | 75±5 | 2.5↓ | 0.1↓ |
除以上規格外，其它可按客戶特殊要求單獨設計。 In addition to the above specifications, other special requirements can design according to customers | |||||
二、顏色：白色或淡藍色。
Color: White or light blue
三、電氣特性：比重比壓花無紡布輕40%左右，成本較低，且厚度較薄，柔軟性好，耐溫達280°C。
Electrical characteristics: Weight is lighter 40% than embossing non-woven tape, lower cost, thin thickness, good flexibility, heat resistance up to 280°C.
四、分切及包裝：分切最小寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
